GPS MODULE Neo 6

Overview

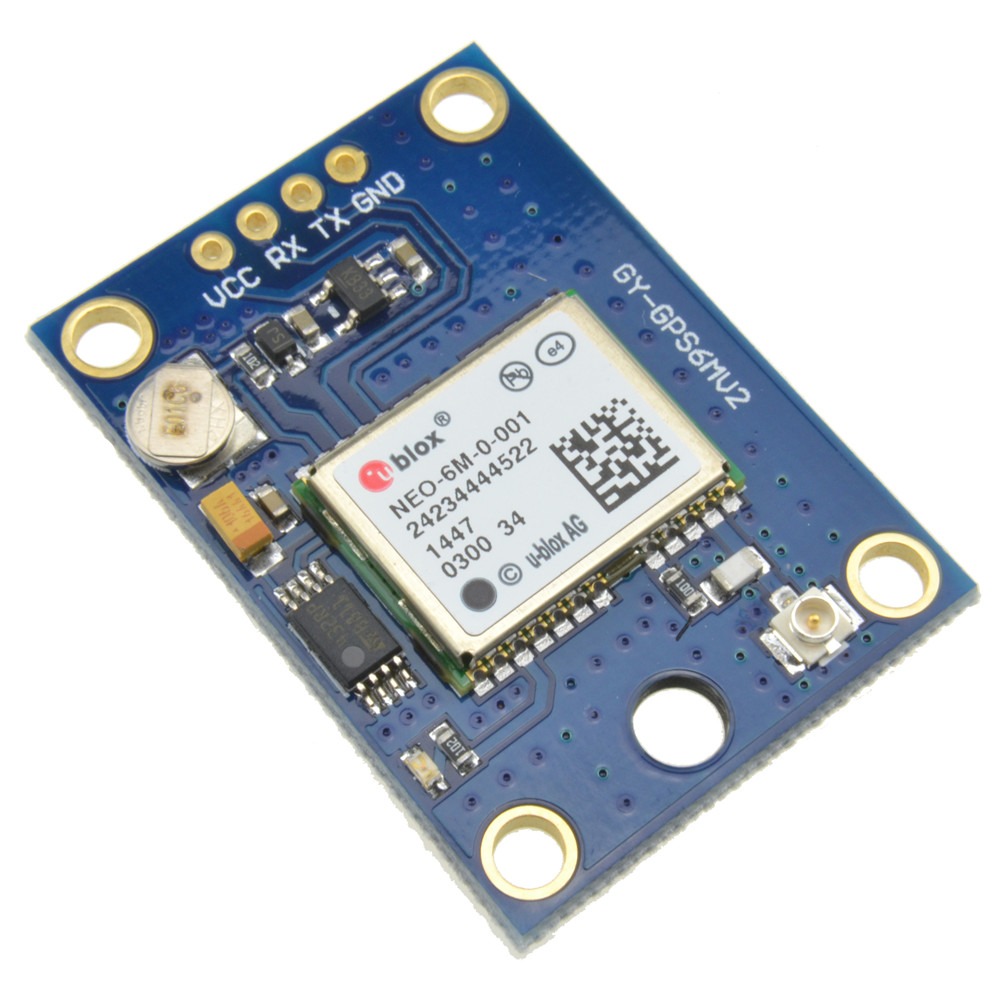

Product Overview The Neo-6 GPS Module is a compact and highly accurate GPS receiver module designed for various navigation and positioning applications. With its excellent sensitivity and fast acquisition time, the Neo-6 is ideal for robotics, drones, and portable devices. Specifications

• Model: Neo-6 GPS Module
• Frequency: L1 (1575.42 MHz)
• Sensitivity: -167 dBm (Tracking), -148 dBm (Acquisition)
• Update Rate: Up to 10 Hz
• Protocol: NMEA 0183, UBlox
• Operating Voltage: 3.0V to 5.5V
• Dimensions: 25mm x 35mm
• Weight: Approximately 8g

Key Features

• High Accuracy: Provides precise positioning with a horizontal accuracy of less than 2.5 meters.
• Fast Acquisition: Quick satellite acquisition time thanks to the advanced tracking algorithm.
• Compact Design: Small form factor makes it suitable for space-constrained applications.

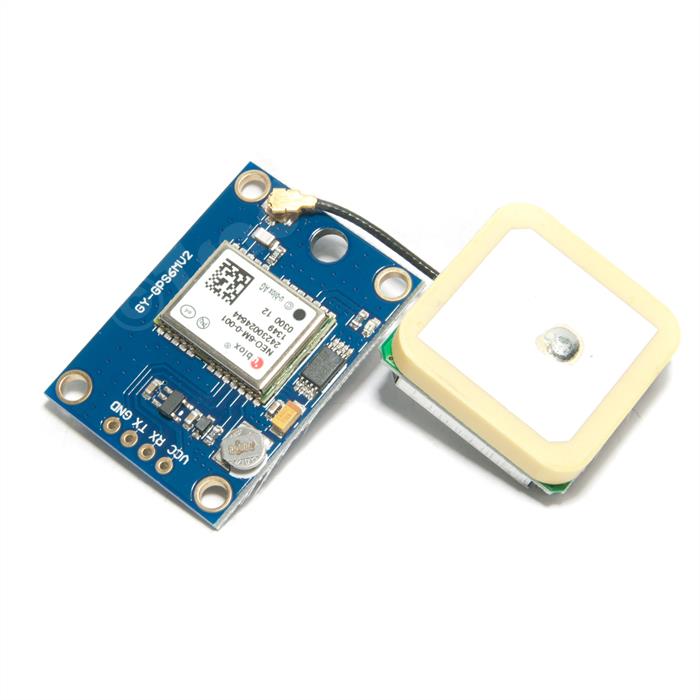

• Built-in Antenna: Comes with an onboard ceramic antenna for enhanced signal reception.
• Easy Integration: Compatible with popular microcontrollers, including Arduino and Raspberry Pi, with straightforward wiring and communication.

Applications

• Robotics: Used for navigation and positioning in autonomous robots.
• Drones: Ideal for flight navigation and tracking in UAV applications.
• Portable Devices: Suitable for handheld GPS applications in outdoor activities.
• IoT Projects: Excellent for Internet of Things applications requiring location data.
• Education: Great for learning and experimentation in electronics and robotics courses.

Why Choose Our Neo-6 GPS Module? The Neo-6 GPS Module combines high performance, reliability, and ease of use, making it an excellent choice for anyone looking to add GPS functionality to their projects. Its versatility makes it suitable for a wide range of applications, from professional to educational.
