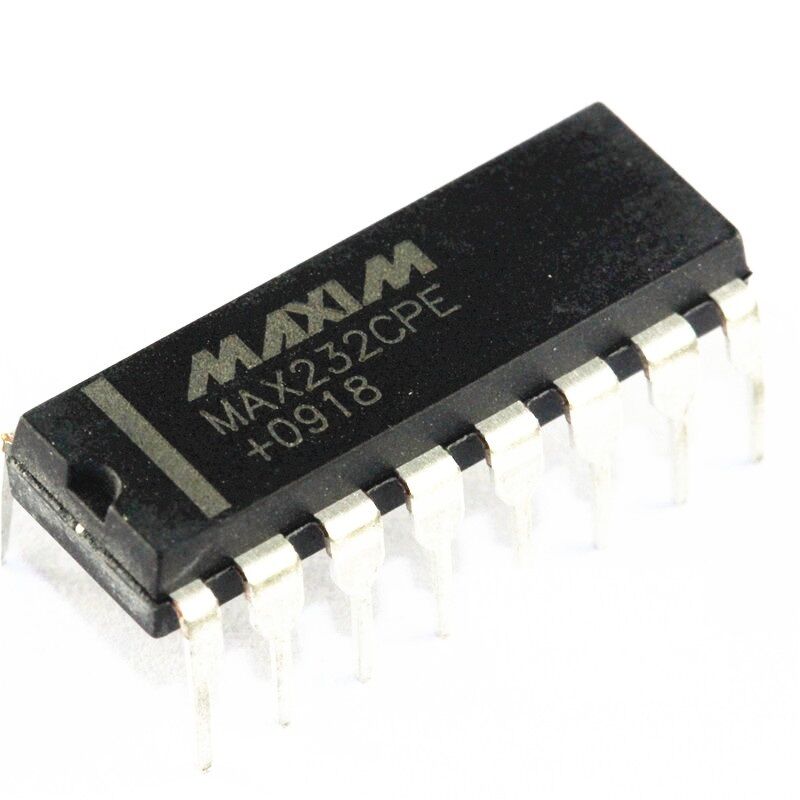

MAX232CPE IC RS232 Tranceiver

Overview

Product Overview The MAX232CPE is a dual RS-232 line transceiver designed for interfacing between TTL/CMOS logic levels and RS-232 voltage levels. This integrated circuit is ideal for applications that require reliable communication over longer distances, providing efficient data transmission in various electronic systems. Specifications

• Type: RS-232 Line Transceiver
• Package Type: DIP-16 (Dual In-line Package)
• Operating Voltage: 4.5V to 5.5V
• Data Rate: Up to 120 kbps
• Input Voltage Range: ±30V
• Number of Drivers: 2
• Number of Receivers: 2
• Temperature Range: 0°C to +70°C

Key Features

• High Speed: Supports data rates up to 120 kbps, ensuring fast communication.
• Low Power Consumption: Designed to minimize power usage, making it suitable for battery-powered applications.
• On-chip Charge Pumps: Generates the required RS-232 voltage levels from a single +5V power supply.
• Wide Input Voltage Range: Handles input voltages up to ±30V for robust performance.
• Robust Design: Features include ESD protection and thermal shutdown for enhanced reliability.

Applications

• Serial Communication: Ideal for connecting microcontrollers or other TTL logic devices to RS-232 devices such as PCs, modems, or printers.
• Data Acquisition Systems: Used in data collection and monitoring systems that require serial communication.
• Embedded Systems: Suitable for use in various embedded applications requiring RS-232 communication.
• Industrial Automation: Effective in systems that involve interfacing with sensors and other devices via RS-232.

Package Includes

• 1 x MAX232CPE IC RS232 Transceiver

Additional Notes For best performance, refer to the datasheet for detailed specifications and application circuits.
