Waveshare 10DOF IMU Sensor Module

Overview

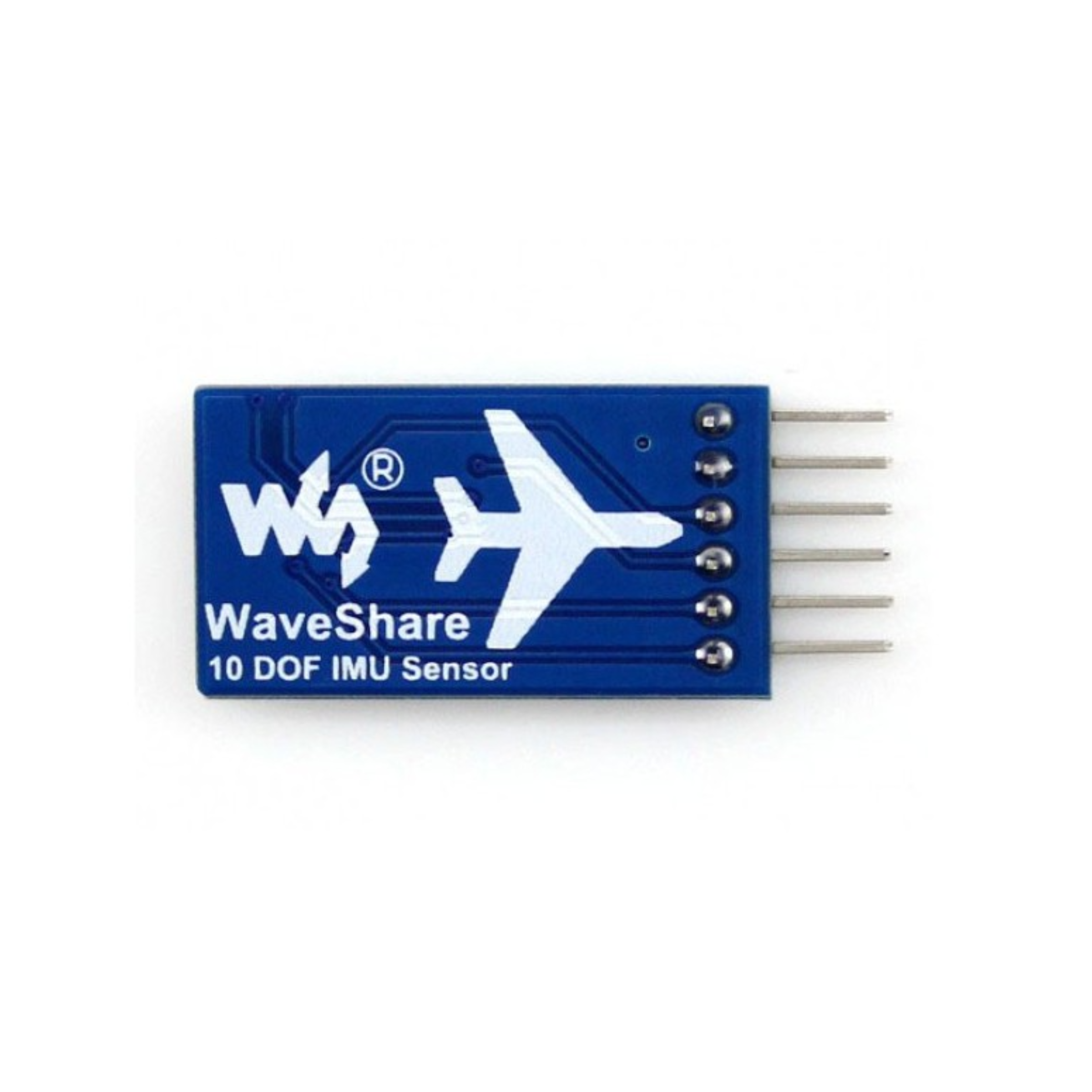

Waveshare 10DOF IMU Sensor Module

The Waveshare 10DOF IMU Sensor Module is a high-precision motion sensing board that combines an accelerometer, gyroscope, magnetometer, and barometric pressure sensor in a single compact module. Designed for robotics, drones, navigation systems, and motion tracking applications, it provides comprehensive orientation and environmental data for advanced embedded projects.

With 10 Degrees of Freedom (10DOF) sensing capability, this module can measure acceleration, angular velocity, magnetic heading, altitude, and atmospheric pressure, making it ideal for attitude estimation and sensor fusion applications. It communicates through standard I²C/SPI interfaces, ensuring easy integration with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.

Whether you are building a flight controller, balancing robot, wearable device, or navigation system, the Waveshare 10DOF IMU delivers accurate and reliable motion data in a compact form factor.

Key Features

• 10DOF motion sensing module

• 3-axis accelerometer

• 3-axis gyroscope

• 3-axis magnetometer (compass)

• Barometric pressure and temperature sensor

• High-precision orientation and motion measurement

• Supports I²C and SPI communication

• Compact Waveshare breakout board

• Low power consumption

• Compatible with Arduino, ESP32, Raspberry Pi, STM32, and other platforms

Technical Specifications

• Product Type: 10DOF IMU Sensor Module

• Degrees of Freedom: 10DOF

• Sensors Included:

  • 3-axis Accelerometer

  • 3-axis Gyroscope

  • 3-axis Magnetometer

  • Barometric Pressure Sensor

• Communication Interface: I²C / SPI

• Operating Voltage: 3.3V (5V tolerant on some versions)

• Output Data: Acceleration, angular velocity, magnetic field, pressure, and temperature

• Board Brand: Waveshare

What Can It Measure?

This IMU module provides:

• Pitch, roll, and yaw orientation

• Linear acceleration

• Rotational speed

• Magnetic heading (compass direction)

• Atmospheric pressure

• Approximate altitude

• Ambient temperature

Using sensor fusion algorithms such as Kalman Filter, Madgwick, or Mahony, highly accurate orientation tracking can be achieved.

Applications

• Drone flight controllers

• UAV navigation systems

• Robotics and balancing robots

• Motion tracking systems

• Wearable devices

• VR/AR orientation sensing

• Inertial navigation projects

• Smart vehicles and autonomous systems

• Altitude and environmental monitoring

Package Includes

• 1x Waveshare 10DOF IMU Sensor Module

Advantages

• Multiple sensors integrated on one board

• Compact and lightweight

• High accuracy motion sensing

• Easy microcontroller integration

• Suitable for advanced robotics and navigation projects

• Reliable environmental and orientation measurements
