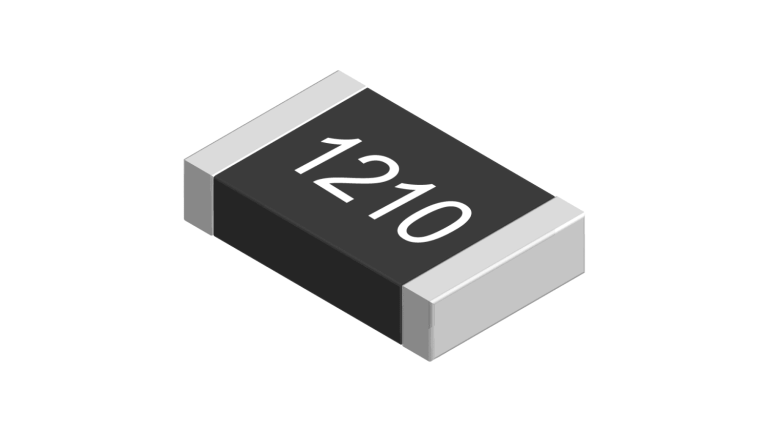

120R 1210 SMD resistor

Overview

Product Overview This 120 Ohm resistor in a 1210 SMD (Surface Mount Device) package is designed for surface-mounted circuits, providing reliable resistance in a compact form. Widely used in various electronics applications, this resistor is ideal for PCB designs where space efficiency and precise resistance values are essential. Specifications

• Resistance: 120 Ohms (120R)
• Tolerance: ±1% for accurate resistance control
• Package: 1210 SMD (3.2mm x 2.5mm)
• Power Rating: 0.5W (½ Watt) max
• Operating Temperature: -55°C to +155°C
• Mounting Type: Surface Mount (SMD) for compact circuit boards

Key Features

• Compact Size: 1210 package is space-saving for high-density PCB layouts.
• High Accuracy: ±1% tolerance ensures stable, precise resistance.
• High Temperature Range: Operates effectively from -55°C to +155°C.
• Wide Application Range: Suitable for current limiting, voltage division, and signal conditioning.
• Surface Mount Design: Ideal for automated SMT assembly processes.

Applications

• Circuit Protection: Use as a current limiter in digital and analog circuits.
• Voltage Divider: Useful in creating accurate voltage divider networks.
• Signal Conditioning: Ideal for conditioning signals in sensitive circuits.
• Power Supplies & Converters: Suitable for use in DC-DC converters and regulators.
• Compact Electronics: Perfect for space-constrained PCBs and high-density designs.

Why Choose Our 120R 1210 SMD Resistor? This 120 Ohm 1210 SMD resistor combines reliability, precision, and compactness, making it an essential component for professional and DIY electronics projects.
