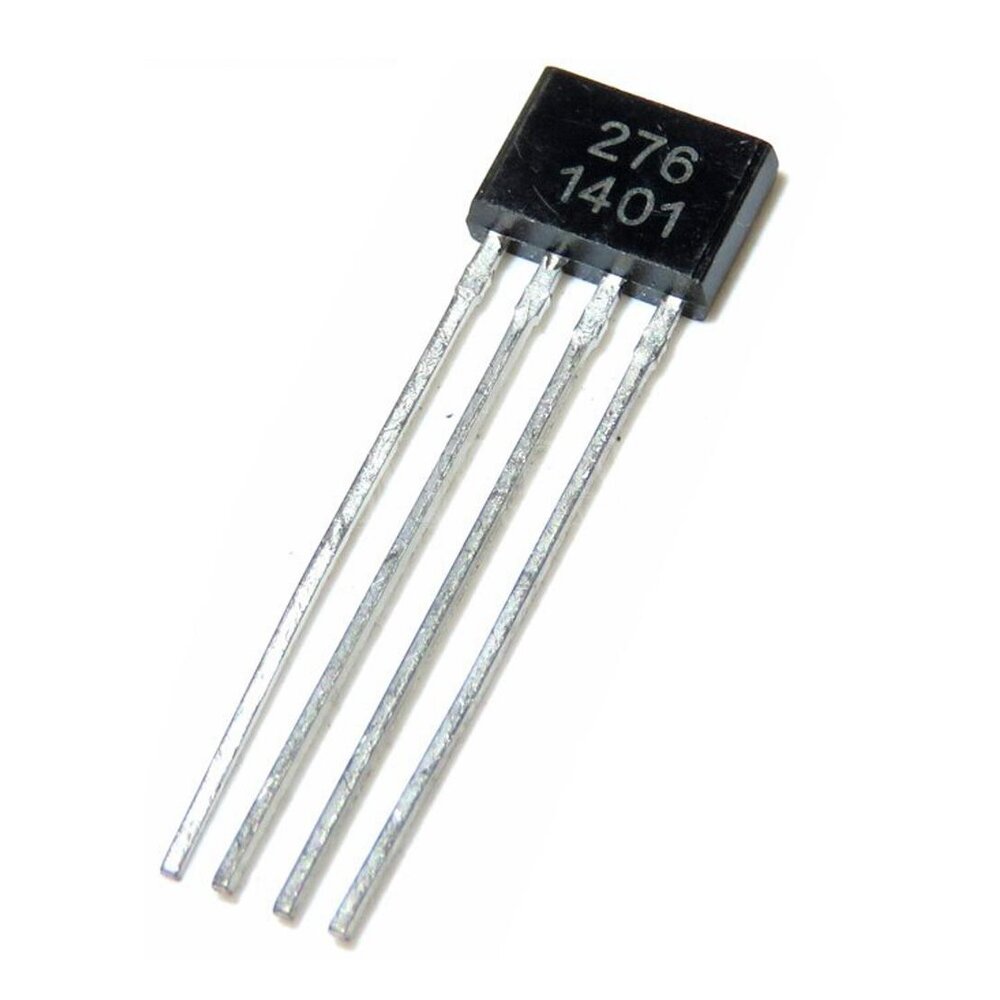

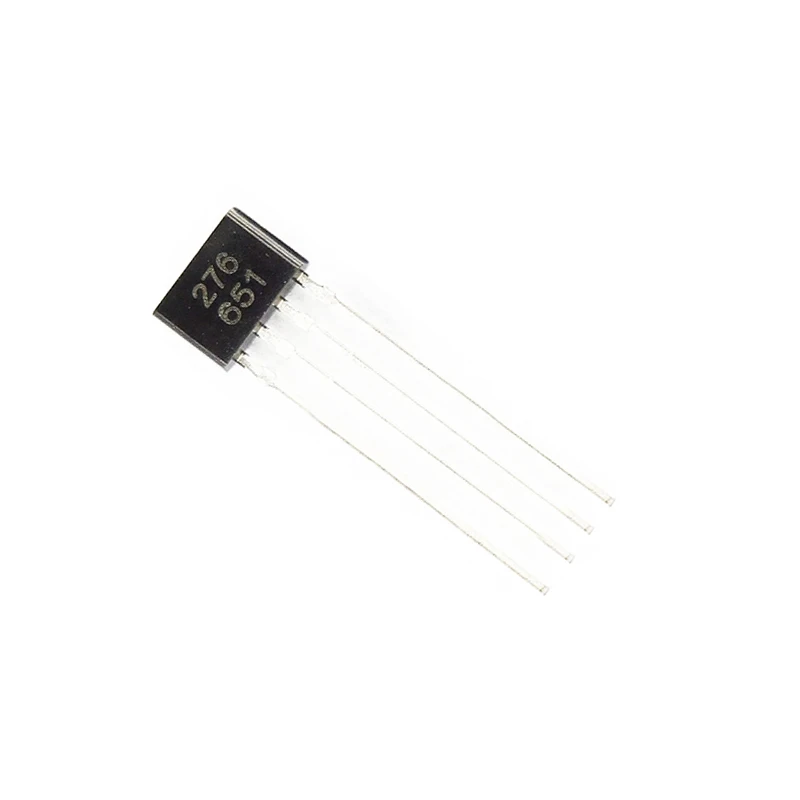

ATS276 Hall-Effect Sensor IC

Overview

ATS276 Hall-Effect Sensor IC

**Overview:**
The ATS276 is a unipolar Hall-effect sensor IC designed for precise magnetic field detection. It is widely used in various applications, including motor speed detection, position sensing, and contactless switching. The ATS276 offers reliable performance, low power consumption, and a compact design, making it an ideal choice for both industrial and consumer electronics.

**Key Features:**
- **Type:** Unipolar Hall-effect sensor
- **Operating Voltage:** 3.5V to 20V DC
- **Output Type:** Open-Drain
- **Magnetic Sensitivity:** 10mT (typical)
- **Output Current:** 25mA (max)
- **Response Time:** 10μs
- **Low Power Consumption:** 3.5mA (typical)

Applications:
- Brushless DC motor commutation
- Speed and position sensing
- Proximity detection
- Contactless switch applications
- Automotive sensors

Specifications:
- **Package:** TO-92S
- **Operating Temperature Range:** -40°C to +125°C
- **Storage Temperature Range:** -55°C to +150°C
- **Switching Threshold:** 10mT (Operate), 7mT (Release)
- **Dimensions:** 5.0mm x 4.0mm x 1.5mm

Package Includes:
- 1x ATS276 Hall-Effect Sensor IC

Compliance:
- RoHS compliant

Notes:
- Requires external pull-up resistor for proper operation in digital circuits.
