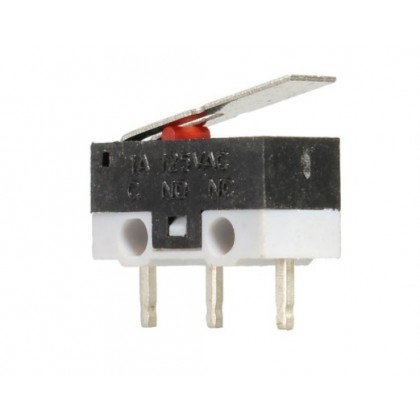

Mini Limit switch

Overview

Mini Limit Switch (Micro Switch, SPDT, 5A 125V AC)
Description: Ensure precise control in your electronic and mechanical systems with the Mini Limit Switch. This compact, single-pole double-throw (SPDT) micro switch is designed for reliable actuation in tight spaces. Perfect for use in automation, robotics, and control panels, the Mini Limit Switch provides consistent performance and durability.

Features:

SPDT Configuration: Single-pole double-throw (SPDT) switch for versatile control with two selectable positions.
Compact Size: Miniature design for use in space-constrained applications.
Current Rating: Supports up to 5A at 125V AC, suitable for moderate power control.
Durable Construction: High-quality materials for long-lasting reliability and resistance to wear.
Easy Mounting: Designed for through-hole mounting with standard 3-pin configuration.
Positive Actuation: Provides a precise, tactile switch action for reliable operation.
Specifications:

Type: Mini Limit Switch (SPDT)
Current Rating: 5A at 125V AC
Switch Configuration: SPDT (Single-Pole Double-Throw)
Actuator Type: Lever or plunger (varies by model)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ at 500V DC
Operating Temperature Range: -25°C to +85°C
Package Type: Standard 3-pin through-hole mount
Applications:

Automation and robotics
Control panels and equipment
Home appliances
Industrial machinery
DIY electronics projects
Limit and position sensing
Package Includes:

1x Mini Limit Switch (Micro Switch)
