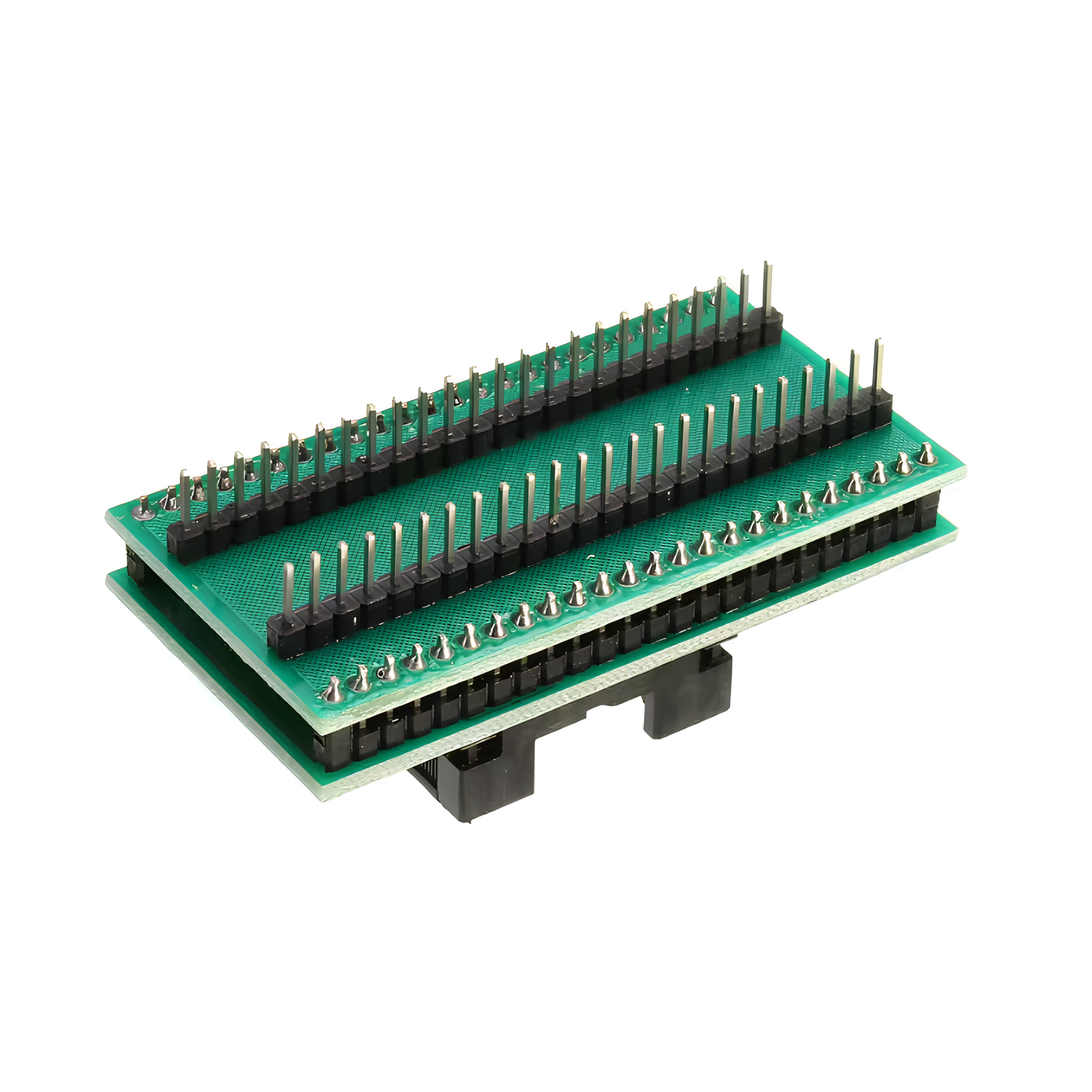

TSOP48 to DIP48 ZIF Programming Adapter
Part no.GH₵79.00
The TSOP48 to DIP48 ZIF Adapter is a professional programming adapter designed for reading, writing, testing, and programming 48-pin TSOP (Thin Small Outline Package) memory ICs using programmers with a 48-pin DIP socket. Equipped with a high-quality ZIF (Zero Insertion Force) socket, it provides reliable electrical contact while protecting IC pins from wear during repeated use. TSOP48-to-DIP48 ad
Out of stockShips from Accra · Fast delivery across all 16 regions of Ghana and beyond!
- Same-day dispatch in Accra for orders before 14:00
- Pay securely with Mobile Money or card
- Genuine parts, tested before dispatch
Overview
TSOP48 to DIP48 ZIF Programming Adapter
The TSOP48 to DIP48 ZIF Adapter is a professional programming adapter designed for reading, writing, testing, and programming 48-pin TSOP (Thin Small Outline Package) memory ICs using programmers with a 48-pin DIP socket. Equipped with a high-quality ZIF (Zero Insertion Force) socket, it provides reliable electrical contact while protecting IC pins from wear during repeated use. TSOP48-to-DIP48 adapters are commonly used as a 1:1 pin conversion for compatible device programmers.
Ideal for electronics repair, embedded development, BIOS recovery, and flash memory programming.
Features
- High-quality TSOP48 to DIP48 programming adapter
- Durable ZIF socket for easy IC insertion and removal
- 1:1 pin conversion for compatible programmers
- Precision PCB with reliable signal routing
- Clearly marked pin-1 orientation for correct installation
- Reduces wear on IC leads during repeated programming
- Compact and durable design for professional use
Applications
- NAND Flash Programming
- NOR Flash Programming
- BIOS Chip Programming
- EEPROM & Flash Memory Programming
- Embedded System Development
- Electronics Repair
- Data Recovery
- Laboratory and Educational Projects
Specifications
| Feature | Details |
|---|---|
| Model | TSOP48-DIP48-REV1 |
| Input Package | TSOP48 |
| Output Package | DIP48 |
| Socket Type | ZIF (Zero Insertion Force) |
| Pin Count | 48 Pins |
| PCB Material | FR-4 |
| Pin Conversion | 1:1 |
| Pin Pitch | 0.5mm (TSOP48) / 2.54mm (DIP48) |
Compatibility
Compatible with many 48-pin TSOP Flash memory ICs, including:
- NAND Flash Memory
- NOR Flash Memory
- EEPROM Devices
- BIOS Flash Chips
- Other standard TSOP48 packaged ICs
Note: Ensure your programmer supports DIP48 adapters and verify your IC package and pinout before purchasing.
Package Includes
- 1 × TSOP48 to DIP48 ZIF Programming Adapter
