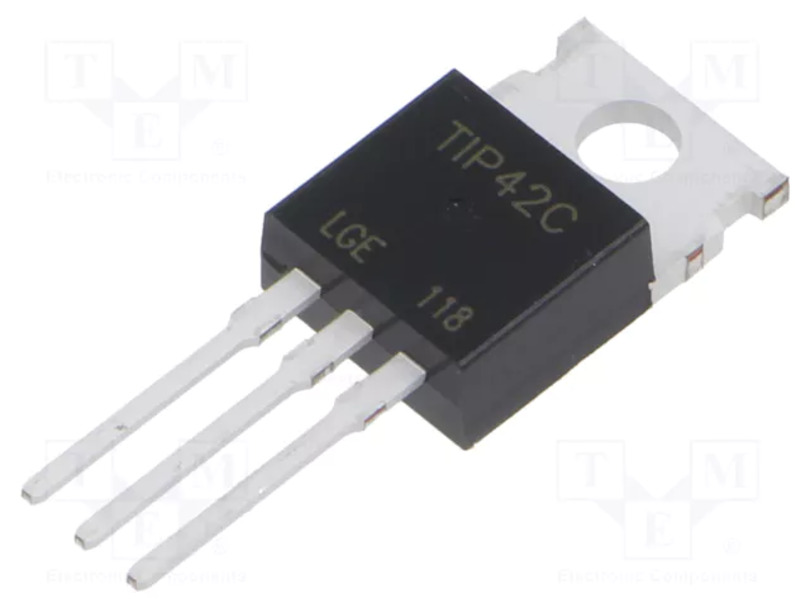

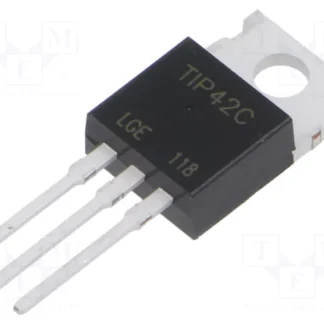

TIP42C PNP Power Transistor

Overview

TIP42C PNP Power Transistor

The TIP42C is a PNP power transistor designed for use in high-power applications, such as audio amplification, motor drivers, and switching circuits. It is well-suited for use in audio amplifiers, power supplies, and other high-current applications where high efficiency and thermal stability are essential. The TIP42C delivers reliable performance with a high voltage rating and low saturation voltage.

---

Key Features:

✔ High Voltage Rating: Rated for 100V collector-emitter voltage, suitable for high-voltage power circuits. ✔ High Current Capacity: Capable of handling up to 6A of continuous collector current, making it ideal for power electronics. ✔ Low Saturation Voltage: Offers low Vce(sat) for efficient operation with reduced heat generation. ✔ Thermal Stability: Excellent thermal performance, making it suitable for high-power, high-efficiency applications. ✔ High Current Gain: Offers high current gain (hFE), ensuring that it amplifies signals with low drive requirements.

---

Specifications:

• Type: PNP Power Transistor
• Collector-Emitter Voltage (Vce): 100V
• Continuous Collector Current (Ic): 6A
• Emitter-Base Voltage (Veb): 5V
• Collector Saturation Voltage (Vce(sat)): 1.5V (maximum)
• DC Current Gain (hFE): 50 to 150 (at Ic = 4A, Vce = 10V)
• Power Dissipation (Ptot): 65W
• Operating Junction Temperature (Tj): -65°C to 150°C
• Package Type: TO-220

---

Applications:

✔ Audio Amplifiers: Ideal for class AB audio power amplifiers, where low distortion, high power output, and efficient operation are essential. ✔ Motor Control Circuits: Suitable for motor drivers and power supplies, handling high-current loads with ease. ✔ Switching Power Supplies: Can be used in DC-DC converters, inverters, and voltage regulators for efficient energy conversion and regulation. ✔ Industrial Electronics: A good choice for industrial control systems, switching circuits, and high-power electronic applications.

---

Package Includes:

• 1 x TIP42C PNP Power Transistor

---

The TIP42C is a robust and reliable PNP transistor, ideal for audio amplification, motor control, and power supply applications. Its high voltage tolerance, high current capacity, and excellent thermal performance make it a versatile choice for a variety of high-power electronic circuits.
