TIP41C NPN Power Transistor

Overview

TIP41C NPN Power Transistor

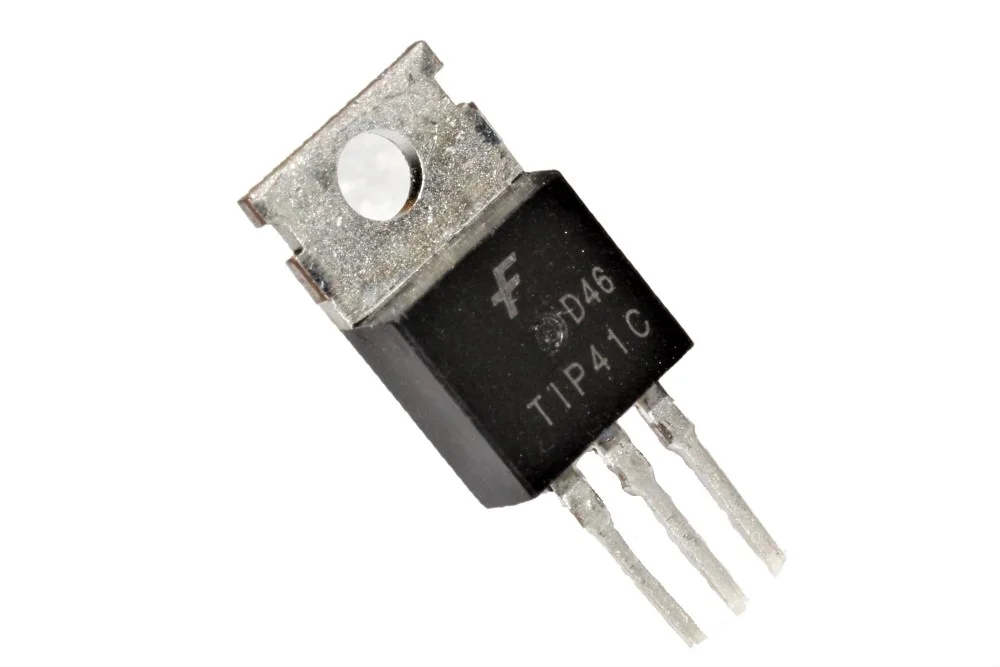

The TIP41C is a medium-power NPN transistor designed for use in general-purpose switching and amplification applications. This complementary-symmetry transistor is often used in audio amplifiers, power amplifiers, and in switching circuits. It features high current handling capacity and is efficient in power applications.

---

Key Features:

✔ NPN Transistor – Suitable for switching applications. ✔ High Current Capability: Can handle up to 6A of continuous current. ✔ High Voltage Rating: Supports 100V Vce (collector-emitter voltage), ideal for power control circuits. ✔ Power Dissipation: Offers up to 65W of power dissipation. ✔ TO-220 Package: Facilitates efficient heat dissipation, especially in high-power applications.

---

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 100V
• Collector-Base Voltage (Vcb): 100V
• Emitter-Base Voltage (Vbe): 5V
• Continuous Collector Current (Ic): 6A
• Power Dissipation (Pd): 65W
• Gain (hFE): 40 to 320 (at Ic = 1A, Vce = 10V)
• Operating Temperature: -55°C to +150°C
• Package Type: TO-220

---

Applications:

✔ Audio Amplifiers: Commonly used in the output stage of class AB amplifiers. ✔ Power Supplies: Ideal for high-current switching applications in DC-DC converters. ✔ Motor Drivers: Used for controlling motors in power circuits. ✔ Switching Circuits: Used in high-current switching for industrial control and automation. ✔ Regulator Circuits: Can be used in voltage regulation for low- and medium-power systems.

---

Package Includes:

• 1 x TIP41C NPN Power Transistor

---

The TIP41C is a versatile, high-current NPN power transistor, perfect for medium-power applications that require efficient switching or amplification.
