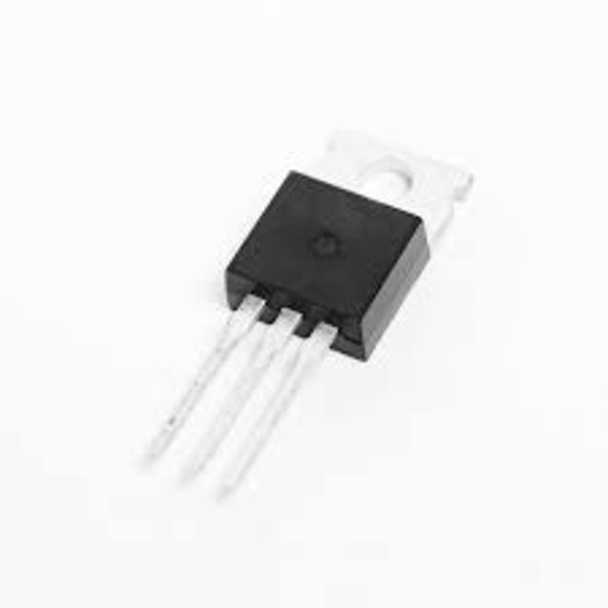

TIP125 PNP Power Transistor
Part no.GH₵5.30
The TIP125 is a PNP Darlington power transistor designed for general-purpose switching and amplifier applications. With high current and voltage ratings, it is ideal for motor control, power switching circuits, and audio amplification.
In stock · 100 availableShips from Accra · Fast delivery across all 16 regions of Ghana and beyond!
- Same-day dispatch in Accra for orders before 14:00
- Pay securely with Mobile Money or card
- Genuine parts, tested before dispatch
Overview
TIP125 PNP Power Transistor
The TIP125 is a PNP Darlington power transistor designed for general-purpose switching and amplifier applications. With high current and voltage ratings, it is ideal for motor control, power switching circuits, and audio amplification.Key Features:
- High Current Capability: Supports up to 5A continuous current and 8A peak.
- High Voltage Tolerance: Can handle up to 60V.
- Darlington Configuration: Provides high gain for efficient switching.
- Low Saturation Voltage: Ensures efficient power switching.
- TO-220 Package: Easy to mount with good heat dissipation.
Specifications:
- Transistor Type: PNP Darlington
- Voltage Rating (Vce): 60V
- Current Rating (Ic): 5A (continuous), 8A (peak)
- Power Dissipation: 65W
- DC Current Gain (hFE): 1000 (min)
- Package Type: TO-220
Applications:
- Motor Control: Used in DC motor drivers and switching circuits.
- Power Switching: Suitable for high-power switching applications.
- Amplifiers: Used in audio amplifier circuits.
- LED & Relay Drivers: Controls high-power LEDs and relays.
Package Includes:
- 1 x TIP125 PNP Darlington Transistor
The TIP125 is a reliable and efficient power transistor that excels in various high-power applications, making it a must-have for engineers, hobbyists, and DIY enthusiasts.
