RV097NS Potentiometer with switch

Overview

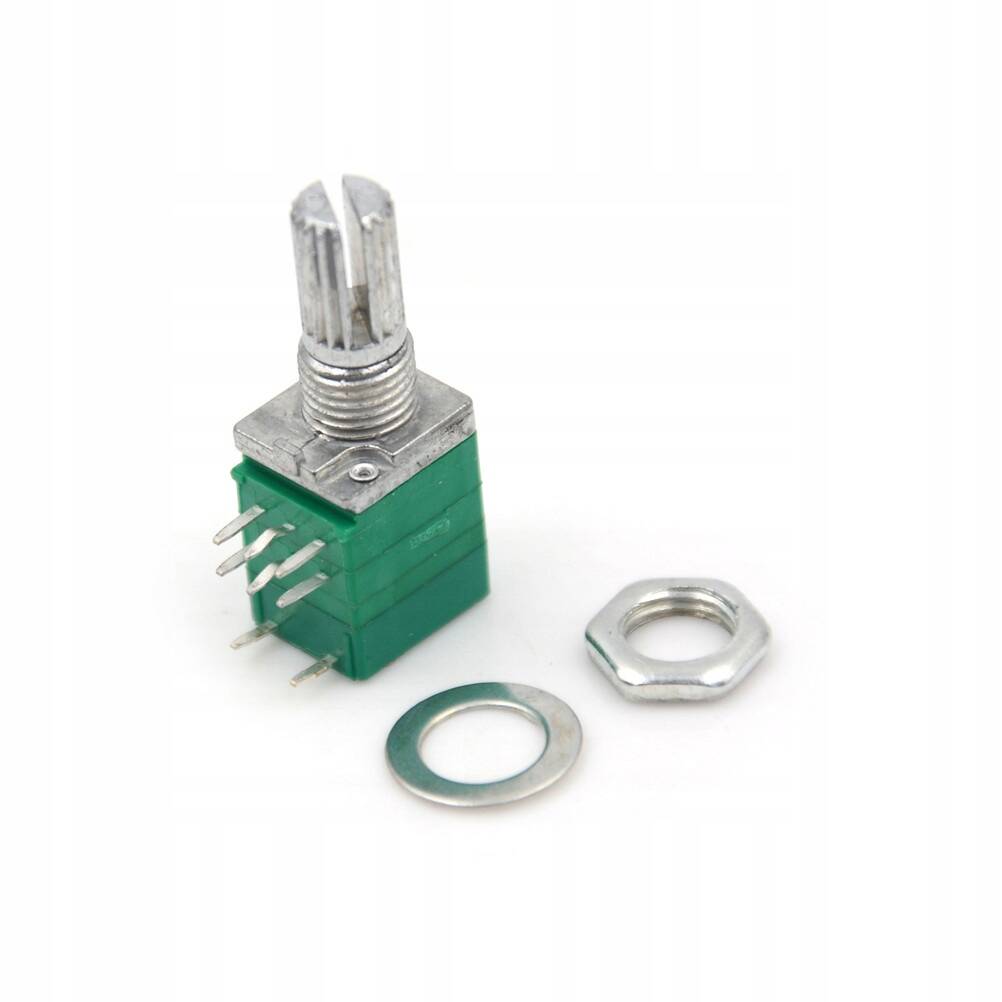

RV097NS Potentiometer with Switch (10kΩ, 3-Terminal, Rotary, Panel Mount)
Description: The RV097NS Potentiometer with Switch is a versatile component that combines precise variable resistance control with an integrated switch function. Ideal for use in electronic and electrical applications where both adjustment and on/off control are required, this potentiometer features a rotary design for easy adjustment and a built-in switch for additional functionality.

Features:

Rotary Potentiometer: Provides smooth and precise control over resistance, ideal for adjusting volume, brightness, or other variable parameters.
Integrated Switch: Includes a built-in switch function for convenient on/off control, reducing the need for additional components.
10kΩ Resistance: Standard resistance value suitable for a wide range of applications.
Panel Mount Design: Designed for easy mounting on a panel with secure attachment.
Durable Construction: High-quality materials ensure long-lasting performance and reliability.
Specifications:

Type: Rotary Potentiometer with Integrated Switch
Resistance Value: 10kΩ
Number of Terminals: 3 (for potentiometer) + 2 (for switch)
Mounting Type: Panel Mount
Switch Type: On/Off
Rotation Angle: 270°
Power Rating: 0.5W
Operating Temperature Range: -10°C to +70°C
Applications:

Audio volume controls
Lighting dimmers
Equipment adjustment
Control panels and user interfaces
DIY electronics projects
Package Includes:

1x RV097NS Potentiometer with Switch (10kΩ, Rotary, Panel Mount)
