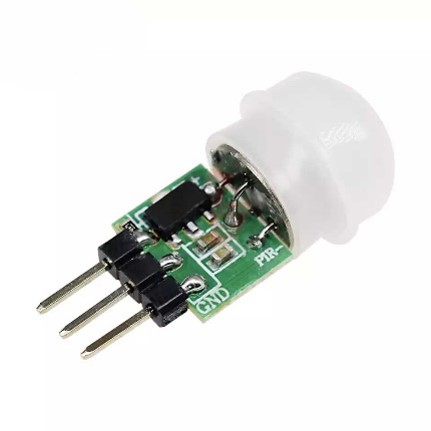

PIR Micro Motion Sensor AM312

Overview

The AM312 PIR Micro Motion Sensor is a compact, low-power passive infrared (PIR) sensor designed for motion detection in various applications. Its small size and energy efficiency make it ideal for battery-powered devices and space-constrained projects. Key Features:

• Wide Operating Voltage: Supports 2.7V to 12V DC, offering flexibility for different power sources.
• Low Power Consumption: Consumes approximately 0.1mA in static mode, making it suitable for energy-efficient applications.
• Compact Design: With PCB dimensions of 10mm x 8mm, it fits easily into small devices.
• Adjustable Delay Time: Features a fixed delay time of 2 seconds, suitable for various motion detection needs.
• Wide Detection Range: Covers a cone angle of up to 100 degrees with a sensing distance of 3 to 5 meters.
• Temperature Range: Operates effectively between -20°C and +60°C, suitable for diverse environments.

Applications:

• Motion-Activated Lighting: Automatically turns lights on or off upon detecting movement.
• Security Systems: Detects unauthorized entry in alarm systems.
• Energy Management: Conserves power by controlling devices based on occupancy.
• Smart Home Devices: Integrates with home automation systems for enhanced functionality.

Technical Specifications:

• Working Voltage: 2.7V to 12V DC
• Static Power Consumption: 0.1mA
• Delay Time: 2 seconds
• Trigger Mode: Repeatable
• Sensing Range: ≤100° cone angle, 3-5 meters
• Operating Temperature: -20°C to +60°C
• PCB Dimensions: 10mm x 8mm

Package Includes:

• 1 x AM312 PIR Micro Motion Sensor Module

Note: Ensure proper handling and installation to maintain sensor performance. For detailed technical information, refer to the AM312 Datasheet. Enhance your projects with the reliable and efficient AM312 PIR Micro Motion Sensor, perfect for a wide range of motion detection applications.
