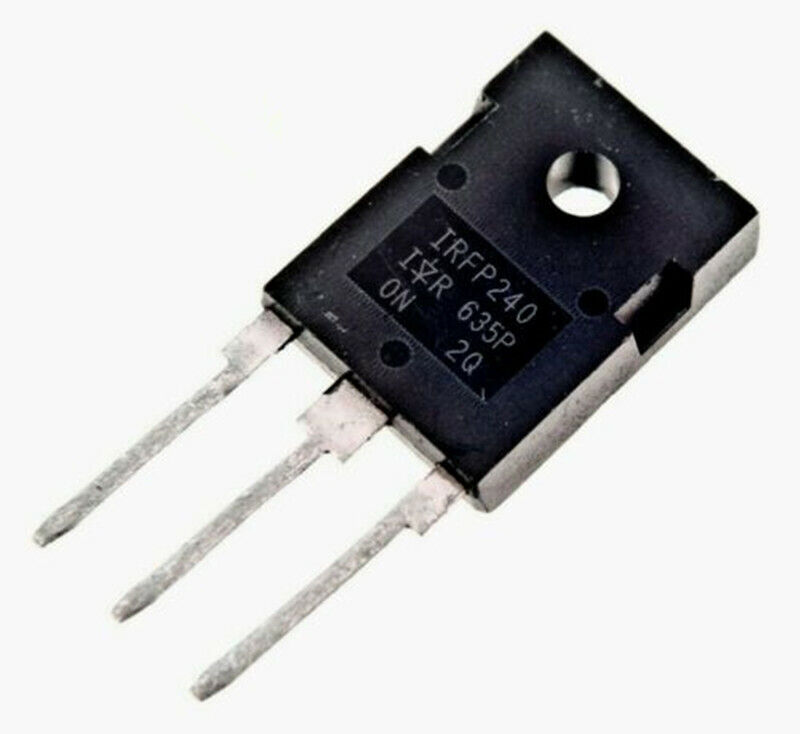

IRFP240 N-channel MOSFET

IRFP240 N-channel MOSFET

The IRFP240 is a high-performance N-channel MOSFET that is widely used in power electronics, including amplifiers, motor drivers, and power regulation circuits. It offers low Rds(on) (drain-to-source resistance), high switching speed, and excellent thermal stability, making it ideal for high-current applications.

---

Key Features:

✔ High Power Capability: Supports up to 250V drain-source voltage and 20A of continuous current. ✔ Low Rds(on): Features low on-state resistance for efficient conduction. ✔ Fast Switching Speed: Ideal for high-speed switching applications. ✔ Excellent Thermal Performance: Low power loss and heat generation. ✔ TO-3P Package: Designed for easy integration and effective heat dissipation.

---

Specifications:

• Type: N-channel MOSFET
• Drain-Source Voltage (Vds): 250V
• Continuous Drain Current (Id): 20A
• Gate-Source Voltage (Vgs): ±20V
• Rds(on) (Drain-Source Resistance): 0.02Ω (at Vgs = 10V, Id = 10A)
• Gate Threshold Voltage (Vgs(th)): 2-4V
• Total Gate Charge (Qg): 70nC
• Power Dissipation (Pd): 150W
• Package Type: TO-3P

---

Applications:

✔ Audio Amplifiers: Used in high-power audio amplifiers due to its high efficiency and thermal performance. ✔ Motor Control: Ideal for DC motor control in robotics, industrial automation, and power inverters. ✔ Switching Regulators: Commonly found in DC-DC converters and power management circuits. ✔ Class D Amplifiers: Widely used in Class D audio amplifiers for efficient switching and power handling. ✔ Power Supplies: Used in power supply circuits to switch high currents effectively with minimal heat generation. ✔ Inverters: Often found in solar inverters and uninterruptible power supplies (UPS).

---

Package Includes:

• 1 x IRFP240 N-channel MOSFET

---

The IRFP240 is a high-power N-channel MOSFET that provides excellent performance for switching, amplification, and power regulation applications. Its low Rds(on), high current capacity, and excellent thermal performance make it a great choice for demanding high-power circuits in both audio and industrial applications.
