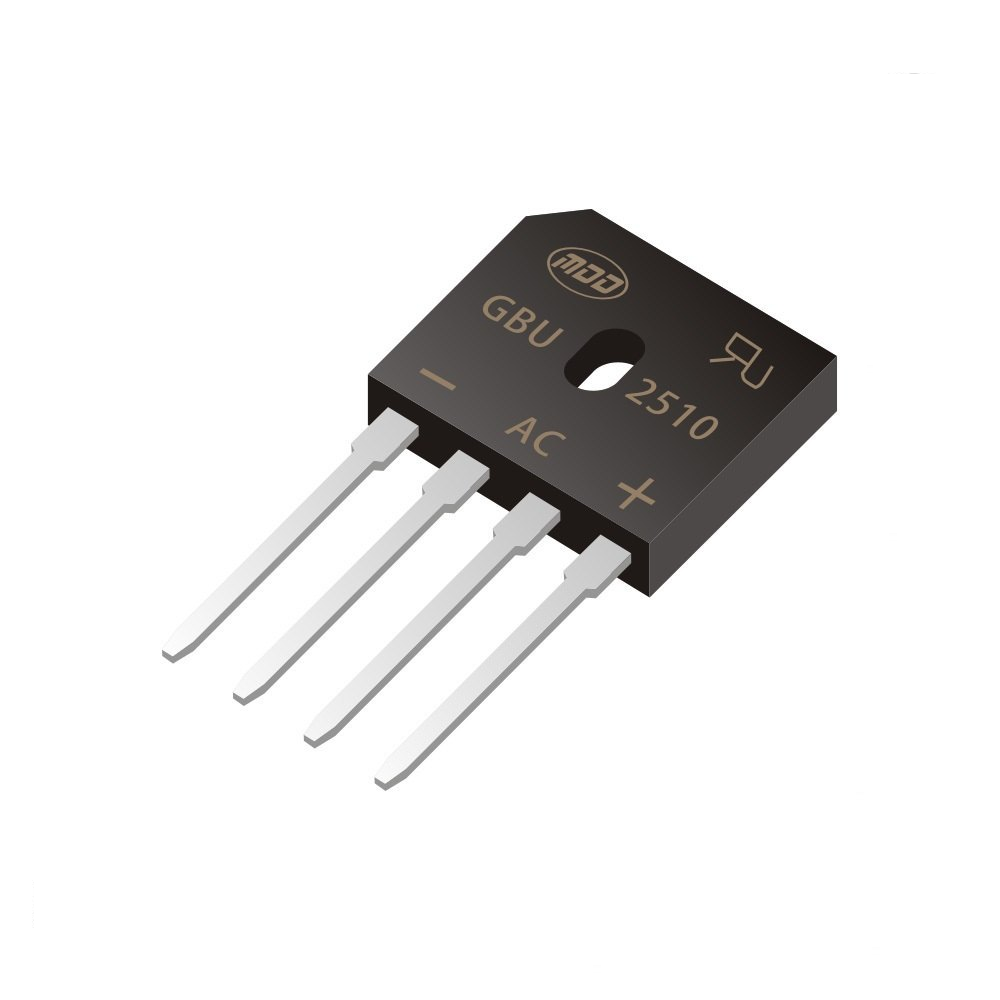

GBU2510 Bridge Rectifier, 25A 1000V

Overview

GBU2510 Bridge Rectifier, 25A 1000V

Description:
The GBU2510 is a high-performance, single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC). With a current rating of 25 Amperes and a peak reverse voltage of 1000 Volts, this rectifier is ideal for a wide range of applications, including power supplies, industrial equipment, and motor drives.

Key Features:

High Current Rating: 25A continuous current for robust power conversion.
High Voltage Rating: 1000V peak reverse voltage for reliable performance in demanding environments.
Compact Design: GBU package for space-saving in circuit boards.
High Surge Current Capability: Capable of withstanding surges up to 400A, providing protection against voltage spikes.
Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
Temperature Range: Operates reliably across a wide temperature range from -55°C to +150°C.

Specifications:

Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V
Maximum RMS Voltage (VRMS): 700V
Maximum DC Blocking Voltage (VDC): 1000V
Maximum Average Forward Rectified Current (IF(AV)): 25A
Peak Forward Surge Current (IFSM): 400A
Forward Voltage Drop (VF): 1.1V at 12.5A
Operating Temperature Range: -55°C to +150°C
Package: GBU-4

Applications:

Power supply rectification
Battery charging systems
DC motor controls
UPS systems
Inverters and converters
Welding equipment

Dimensions:

Length: 24.6mm
Width: 22.4mm
Height: 3.6mm
Lead Spacing: 5.1mm
Compliance:

RoHS Compliant: Meets environmental regulations for hazardous substances.
UL Listed: Ensures safety and performance standards are met.

Package Includes:

1 x GBU2510 Bridge Rectifier
Warranty:
1-year limited warranty covering manufacturing defects.
