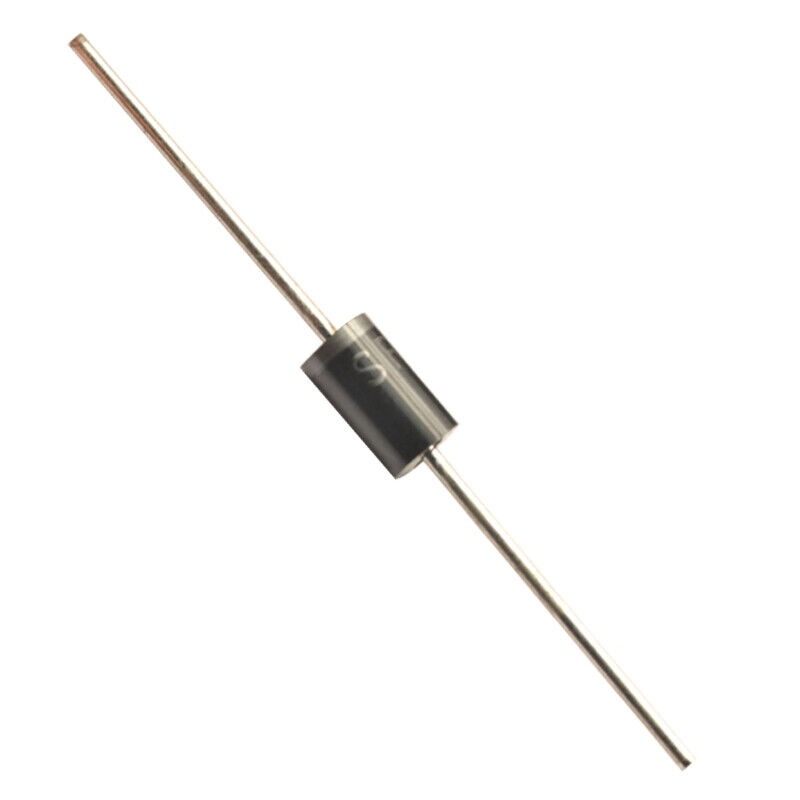

FR307 diode

Overview

Product Overview The FR307 is a high-speed rectifier diode designed for use in power supply circuits, switching power supplies, and other applications requiring rapid recovery times. With its robust performance and ability to handle high current loads, the FR307 is an essential component for electronics enthusiasts and professionals alike. Specifications

• Model: FR307
• Type: Fast Recovery Rectifier Diode
• Peak Reverse Voltage (VRRM): 1000V
• Average Forward Current (IF): 3A
• Forward Voltage Drop (VF): 1.1V at 3A
• Recovery Time (trr): Typically 500ns
• Package Type: DO-214AC (SMB)

Key Features

• High Voltage Rating: Capable of withstanding reverse voltages up to 1000V, making it suitable for high-voltage applications
• Fast Recovery: Designed for quick switching, reducing the risk of loss in high-speed applications
• High Current Capacity: Handles an average forward current of 3A, suitable for a variety of load conditions
• Robust Design: Durable construction for reliable operation in demanding environments

Applications

• Power Supply Circuits: Ideal for use in rectification and voltage regulation in power supplies
• Switching Power Supplies: Perfect for high-frequency applications requiring fast recovery diodes
• Inverter Circuits: Commonly used in inverters for converting DC to AC power
• Motor Control: Useful in motor control circuits and other applications needing fast switching capabilities

Why Choose Our FR307 Diode? The FR307 diode is a trusted choice for its reliability, high-speed performance, and versatility in a range of applications. Whether you're working on a complex power supply design or a straightforward rectification task, the FR307 offers the performance and specifications needed to get the job done effectively.
