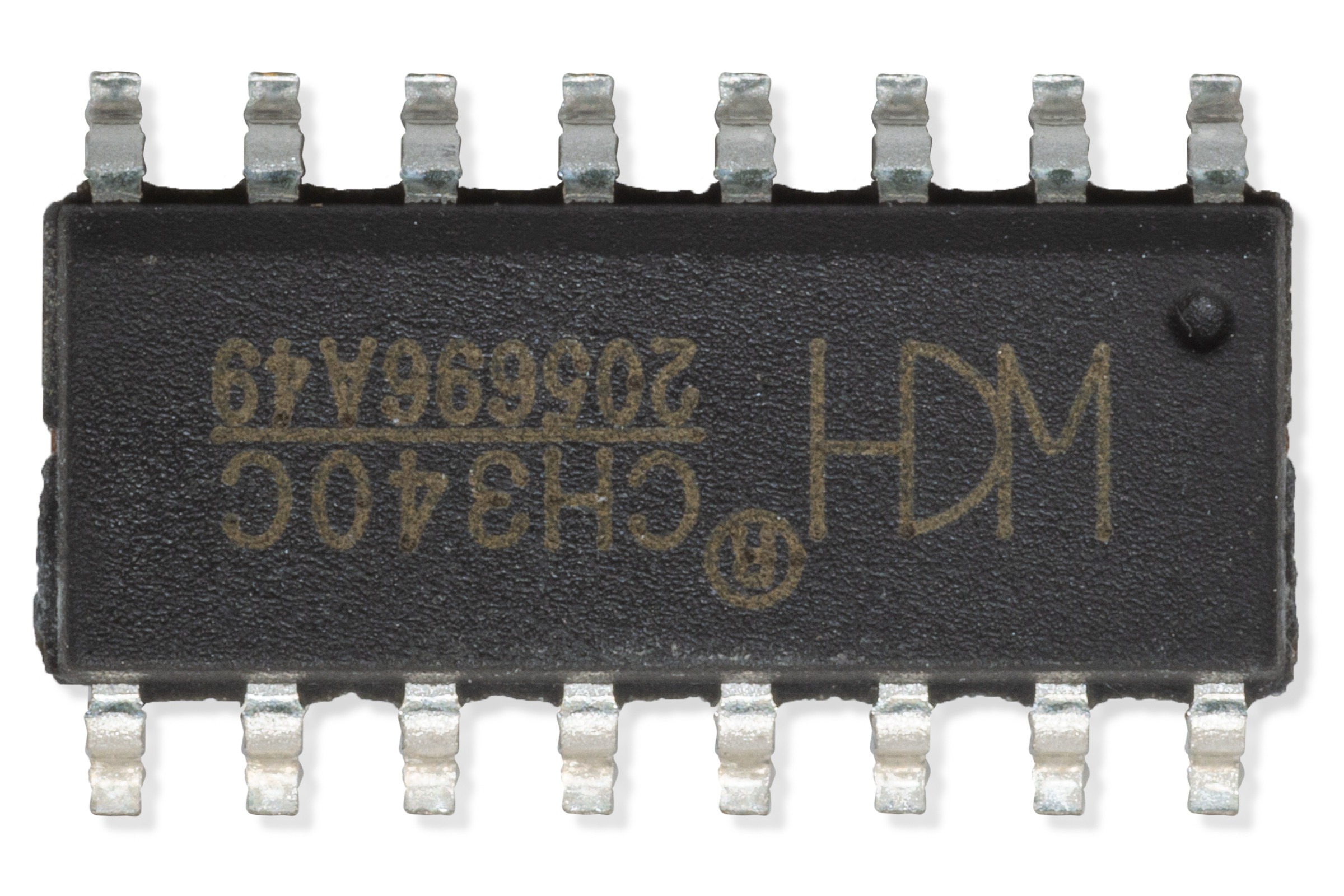

CH340C usb to TTL Chip

Overview

Product Overview The CH340C USB to TTL Chip is a versatile and widely used interface for converting USB signals to TTL (Transistor-Transistor Logic) levels. It is ideal for applications that require a reliable USB connection for microcontrollers and other embedded systems. Specifications

• Package Type: SOP-16 (Small Outline Package)
• Operating Voltage: 3.3V to 5.5V
• Data Transfer Rate: Up to 2 Mbps
• Interface: USB 2.0 Full Speed compatible
• Operating Temperature Range: -40°C to +85°C

Key Features

• Easy to Use: Plug-and-play interface for quick integration with microcontrollers.
• Wide Compatibility: Works with a variety of operating systems including Windows, macOS, and Linux.
• Low Power Consumption: Efficient design suitable for battery-operated applications.
• Integrated Voltage Regulator: Supports direct connection to USB power.
• Driver Support: Compatible with standard USB drivers, making setup straightforward.

Applications

• Microcontroller Programming: Ideal for programming Arduino, ESP8266, and other microcontrollers.
• Serial Communication: Perfect for serial communication with various devices in embedded systems.
• Data Logging: Used in data logging applications for real-time data transfer.
• Home Automation: Facilitates communication between USB-enabled devices and microcontrollers.

Package Includes

• 1 x CH340C USB to TTL Chip
• 1 x Datasheet (for pin configuration and application notes)

Installation Notes

• Follow the datasheet for pin assignments and connection diagrams for optimal performance.
• Ensure appropriate drivers are installed for your operating system.
