BC337 NPN Transistor

Overview

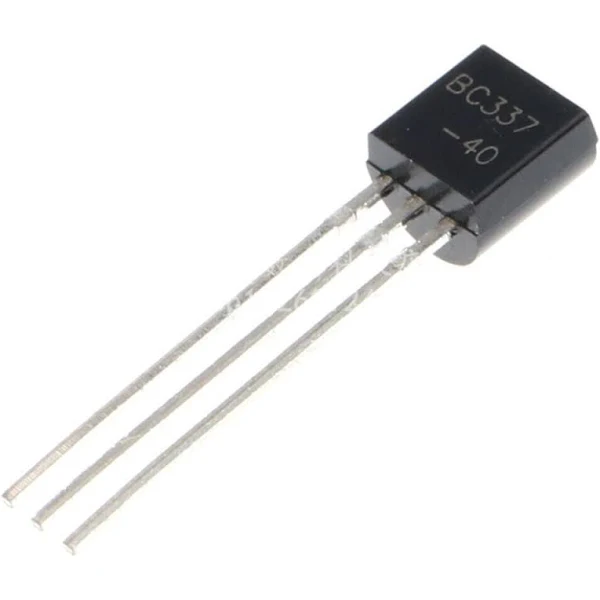

BC337 NPN Transistor (General-Purpose, 45V, 800mA, TO-92)
Description: The BC337 NPN Transistor is an excellent choice for general-purpose switching and amplification in your electronic circuits. With its robust specifications and versatile TO-92 package, the BC337 delivers reliable performance for a wide range of applications, from DIY projects to professional designs.

Features:

NPN Type: Suitable for general-purpose switching and amplification tasks.
Maximum Collector-Emitter Voltage: 45V, ideal for moderate voltage applications.
Maximum Collector Current: 800mA, providing sufficient current handling for most applications.
High Gain: Offers a high current gain (hFE) for effective signal amplification.
Compact Package: TO-92 package for easy integration into various circuits.
Low Saturation Voltage: Ensures efficient operation with minimal voltage drop.
Specifications:

Type: NPN Bipolar Junction Transistor (BJT)
Collector-Emitter Voltage (Vceo): 45V
Collector-Base Voltage (Vcbo): 50V
Emitter-Base Voltage (Vebo): 5V
Collector Current (Ic): 800mA
DC Current Gain (hFE): 63 to 250
Power Dissipation: 625mW
Package Type: TO-92
Operating Temperature Range: -55°C to +150°C
Applications:

General-purpose switching
Signal amplification
Audio and video equipment
Relay drivers
Power supply circuits
DIY electronics and prototyping
Package Includes:

1x BC337 NPN Transistor (TO-92)
