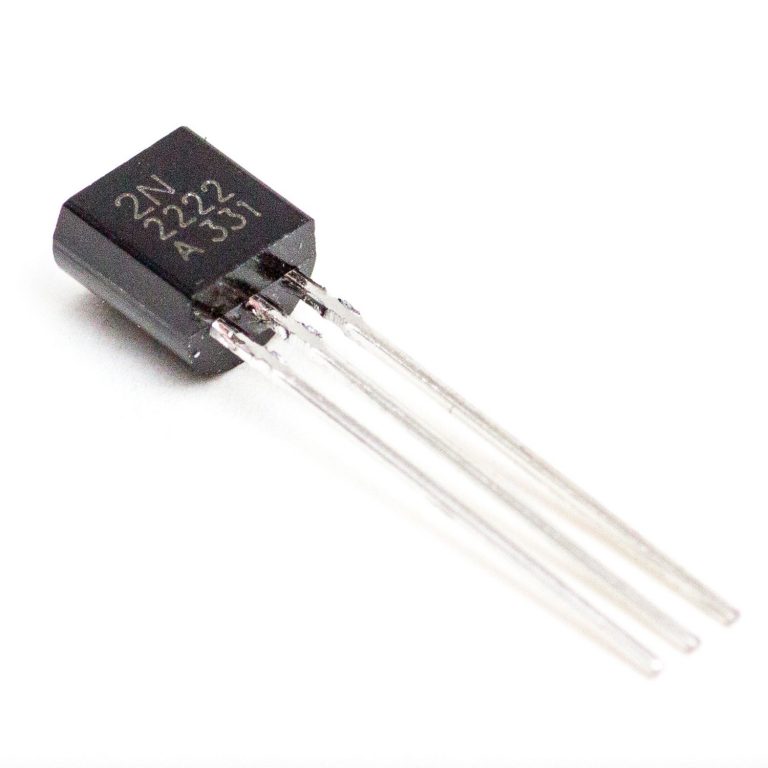

2N2222 Transistor

Overview

Product Overview The 2N2222 is a widely used NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. Known for its durability and versatility, the 2N2222 transistor is a staple in electronics projects, from hobbyist circuits to professional designs, where moderate power, high-speed switching, and reliable performance are essential. Specifications

• Transistor Type: NPN BJT
• Collector-Emitter Voltage (VCEO): 40V
• Collector-Base Voltage (VCBO): 75V
• Emitter-Base Voltage (VEBO): 6V
• Collector Current (IC): 800mA max
• Power Dissipation (Ptot): 500mW
• Package Type: TO-92

Key Features

• High Switching Speed: Fast response, making it suitable for switching applications.
• Moderate Power Handling: Handles up to 800mA, ideal for small motors, LEDs, and other moderate loads.
• Easy to Use: Standard TO-92 package, compatible with breadboards and PCBs.
• Versatile Applications: Perfect for amplification and switching tasks in numerous electronic circuits.

Applications

• Signal Amplification: Widely used in low-power audio and RF amplifier circuits.
• Switching Applications: Ideal for switching small loads such as LEDs, relays, and sensors.
• Hobbyist Projects: A go-to component for DIY electronics, robotics, and educational purposes.
• Microcontroller Circuits: Commonly used for interfacing between microcontrollers and small actuators or indicators.

Why Choose Our 2N2222 Transistor? The 2N2222 is renowned for its reliability and performance, making it a trusted component for countless electronics projects. Whether you’re amplifying signals or switching loads, this transistor provides the versatility and durability needed to bring your designs to life.
